Automatic PET HDPE Bottle Oil Food Oil Cookie Oil Vegetable Oil
Bottle Filling Packing Machine
Description
This filling machine adopts PLC and touch screen automatic control.
It has the advantages of accurate measurement, advanced structure,
stable operation, low noise, large adjustment range and fast
filling speed.
For peanut oil, walnut oil and other oils canned equipment
preferred.
The measurement can be adjusted digitally on the human-machine
interface, and the required measurement can be set to 1L-5L, which
can be reached at the touch of the touch screen, and the
measurement can be fine-tuned on a single head. The equipment is
controlled by the patent system of single head single pump single
frequency converter, which ensures the filling accuracy of 1‰.
While ensuring the filling accuracy, the filling speed is increased
by 20%-35%. The operation is simple, the maintenance is convenient,
the labor cost is saved, and the production efficiency is higher.
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil
/ Rapeseed Oil /Soybean Oil ...Etc kinds Products
Equipment Features:
The principle of the elliptic gear flow meter is to measure the
rotation of the elliptic gear by the pressure head of the measured
medium. The greater the viscosity of the medium, the smaller the
leakage from the gear and the space gap, the greater the viscosity
of the medium, the smaller the leakage error and the more favorable
for the measurement. The elliptical gear flow meter has high
accuracy and is suitable for the measurement of the flow rate in
the medium with high viscosity, especially for the filling of
different labels and different viscosity.
1: the advantage of flow meter way: The adjustment in dosage is
convenience and quick, the volume only need to be set on the touch
screen directly, considered that the vegetable oil is different in
density in the different temperature, resulting in the volume
setting different, we have added an automatic
temperature-compensated system.
The accuracy of filling: instead of the traditional computing type
of flow meter --through pulse generator, now promoted by our
company, adopting rotary encode is more accurate.
2: The speed of filling: instead of the traditional power delivery
-- pressure artesian flow, our machine adopting frequency converter
to adjust the speed of filling, the efficiency highly raised. The
speed can be arbitrarily adjusted on panel. the adjustment of
filling accuracy, promoted by our company, the weight of filling
can be set on the touch screen.
3: It will not affected by the season, In summer and winter the oil
all can be fill easily, not restricted by the viscosity of oil
products, such as gear oil can also be easily filled. The more
viscous material is, the more obvious the advantage of flow meter
filling method is.
4:The operation interface is simple, easy to learn and maintain,
low requirements for field operators, use of start up and formula
adjustment and one key solution
5: No wearing parts in the production process, mechanical
transmission, The cost in use is lower.
Main Performance Parameters:
| Capacity | ≤4000 bottles/hour |
| Filling range | 100ml-5000ML |
| Precision | ± ≤ 0.5% FS |
| Filling nozzles | 6/8/10/12/16 |
| Air consumption | 0.5-1 .0 MPA |
| Power Source | ～380V,50HZ |
| Power | 2.5KW |
| External Dimension | 2200*1600*2400mm (L×W×H) |
| Weight | About 1600Kg |
| Production line height | 850mm±50mm |
| Bottle feed direction | From left to right |
Parameters:

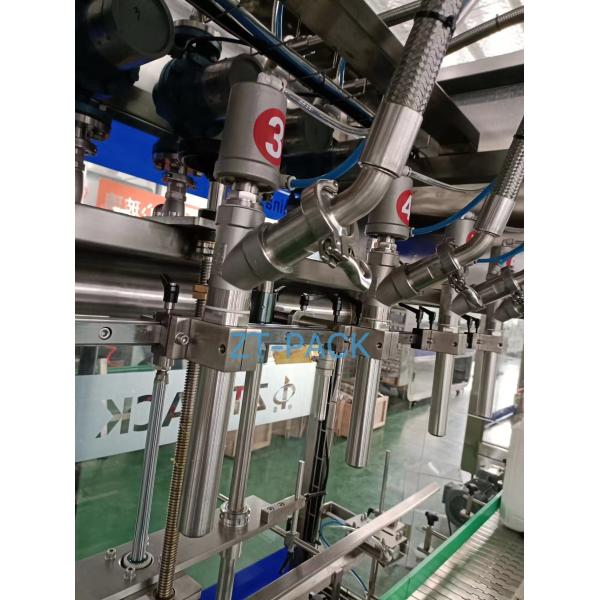

Details:
